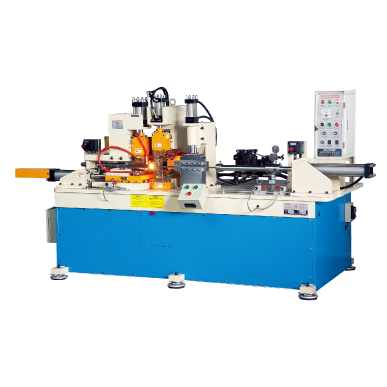

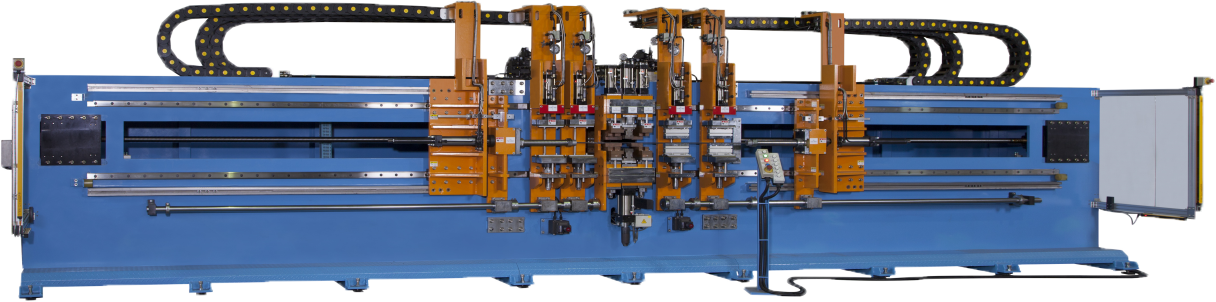

Horizontal Type Electrical Middle Section Heating Upsetter
*This machine has won many patents from national bureau.

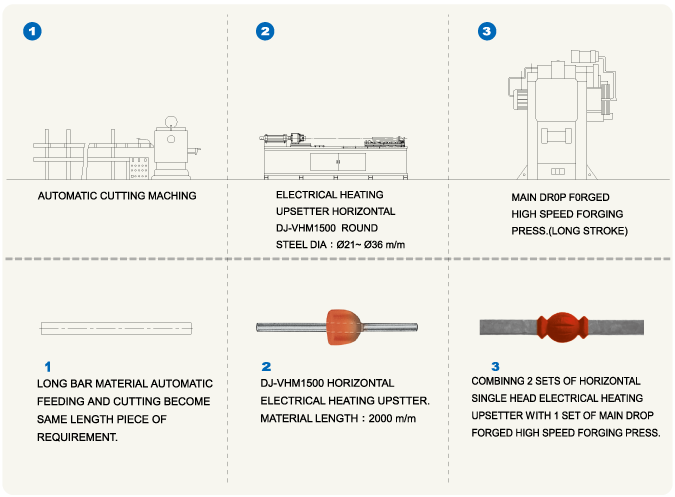

Forging process flow forged solid boss for the wrought iron
Video
Specification of DJ-VHM
| Specification | Rated Capacity | Heating Ability Round Steel Dia | Cooling Water | Usage Rating | Supply Voltage | Rated Frequency |
|---|---|---|---|---|---|---|
| Model | KVA | m/m Ø | ℓ/min | % | V | Hz |
| DJ-VHM910 | 91 | 15~30 | 50 | 90 | 200 440
220 480 380 530 400 600 415 |
50/60 |
| DJ-VHM1500 | 150 | 21~36 | 60 | 90 | 50/60 | |
| DJ-VHM2500 | 250 | 30~45 | 90 | 90 | 50/60 | |
| DJ-VHM4500 | 450 | 35~55 | 100 | 90 | 50/60 | |
| DJ-VHM6500 | 650 | 40~60 | 150 | 90 | 50/60 |
- Suitable for worldwide voltage, design & making according to requirement of customers.
- We can change the specification according to the demand of customers.
