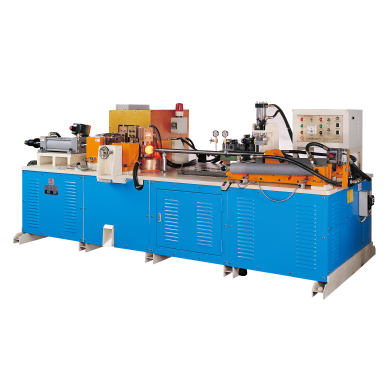

Horizontal Type Electrical Heating Upsetter

*This machine has won many patents from national bureau.

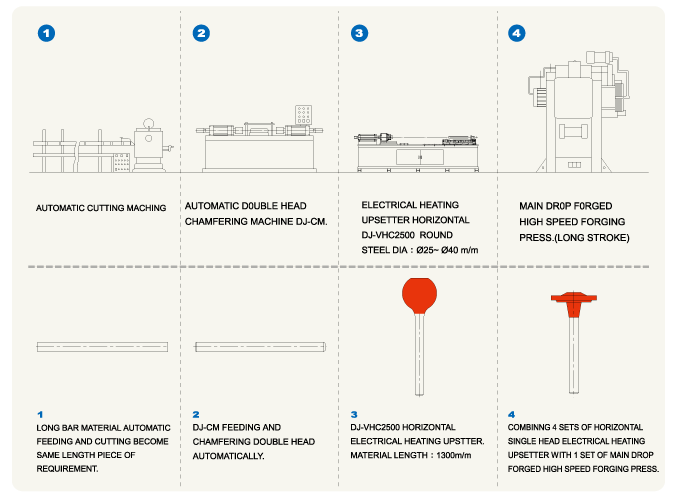

Forging process flow chart of main driving axle transverse bar For fixing vehical wheels.

Specification of DJ-VHC

Specification	Rated Capacity	Heating Ability Round Steel Dia	Cooling Water	Usage Rating	Supply Voltage	Rated Frequency
Model	KVA	m/m Ø	ℓ/min	%	V	Hz
DJ-VHC910	91	15~30	50	90	200 440 220 480 380 530 400 600 415	50 /60
DJ-VHC1500	150	21~36	60	90		50 /60
DJ-VHC2500	250	30~45	90	90		50 /60
DJ-VHC4500	450	35~55	100	90		50 /60
DJ-VHC6500	650	40~60	150	90		50 /60

Suitable for worldwide voltage, design & making according to requirement of customers.
We can change the specification according to the demand of customers.
