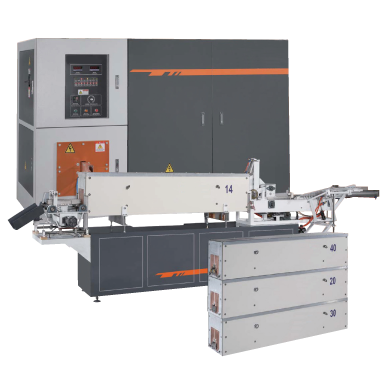

Induction Heating Machine
Smith forge furnace
Distinguishing Feature
- Furnace tube of bin card, automatically will drop the electric system, during emergency , there is no worry for melting the furnace tube and the material.
- The host is a complete system of protection, with the Failure rate; Maintenance is simple.
- Feeding mechanism can use the wheel for moving the workpiece, also possible to make the Pneumatic to push-in the work-piece.
Product Content
| Specification | Power | Frequency | Diameter | Length | Rate | Supply Voltage |
|---|---|---|---|---|---|---|
| Model | KVA | KHz | mm | mm | Kw-hrs/Kg | V |
| DJ-MEF50 | 60 | 10~100 | ø8~ø12 | 25~120 | 2.1~2.3
|
200 440
220 480 380 530 400 600 415 |
| DJ-MEF80 | 95 | 5~60 | ø8~ø12 | 25~150 | 2.1~2.3 | |
| DJ-MEF120 | 140 | 3~45 | ø8~ø16 | 25~200 | 2.1~2.3 | |
| DJ-MEF200 | 228 | 2.5~6.0 | ø20~ø45 | 25~250 | 2.3~2.6 | |
| DJ-MEF400 | 455 | 2.0~4.0 | ø25~ø70 | 25~300 | 2.6~3.0 | |
| DJ-MEF500 | 565 | 2.0~3.0 | ø35~ø100 | 50~400 | 2.8~3.2 | 50/60HZ |
- Suitable for worldwide voltage, design & making according to requirement of customers.
- We can change the specification according to the demand of customers.
