Automation Loading & Unloading Upsetter With NC Controller

Automation Loading & Unloading Upsetter With NC Controller
Automation Loading & Unloading Upsetter With NC Controller
  • Combination of electric & engineering and adoption of imported elements from JAPAN & GERMANY. ( Toshiba, Omron, Fuji, Mitsubishi, and Siemens
  • Under special design & treatment, major transformer has high output efficiency through interior cycling and saves power.
  • To adjust the voltage with button for application range (The diameter of material can be selected freely in the application range.)
  • Stability & accuracy.
  • The contacting electrode mold, made from the best Japanese ( EK2 Alloy Copper ).Heat-proof & wear-resistant and easy replacement.
  • Under special material treatment, the moving slide is stable & durable.
  • Easy replacement the parts and easy operation and easy maintenance.
  • We have cooperative with some famous companies, like:
    USA: eaton Engine, GM, Ford
    Europe: Fisch Tools, Mahle Tri-Ring Valve
    Japan: Nittan, tatung, TYoyota, Kyoto Tools, Isuzu, Mitsubishi, Nissan
    Asia: Mahajak AutoParts, Bangkok Spring.
    APM,MTM: Italy, Austria, France, England, Germany and Japan……
Video

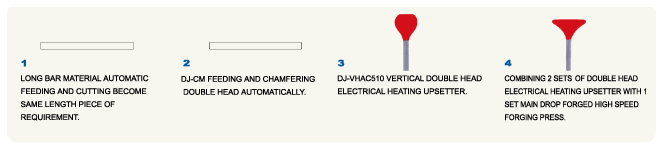

Flow chart of engine valve forging process

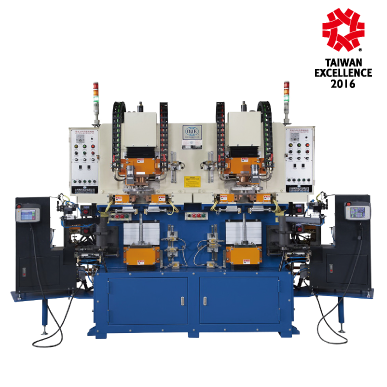

Automation Loading & Unloading Upsetter With NC Controller
Usages

DJ-VHAC160, DJ-VHAC260, DJ-VHAC510, DJ-VHAC910 are suitable for across socket spanner, autos parts, electrical anchor, valves and screws, machines parts, and hardware tools, big size bolt & various hot forging parts manufacturing.

DJ-VHAC160 Automation Loading & Unloading Upsetter With NC Controller
  • These machines apply the hydraulic system supplied by (Japan) and (Germany), plus the cutting-edge logic-type hydraulic solenoid valves; under the stable operating efficiency and spec-complied operating status, machine parts will hold a long operating lifetime. Over the concentrically logic controller provided by (Japan) and (Germany), The parameters which are meaningful to the product quality, such as the forging upset speed and heating current, could be controlled independently.
  • Phase AC is the most fundamental type of output solution. Current returns to zero every half cycle. This type of current solution creates a “no current flow” period and induces intermittent heating phenomenon. AC welding machines with Constant Current Controllers possess the functions of primary voltage compensation and primary/secondary constant current feedback control which automatically adjust power fluctuations.
  • Three Phase Rectified DC is with three-phase balanced input operating at 50 or 60Hz. It’s widely adapted before the emergence of Three Phase Inverter DC. The diodes on the transformers convert AC to DC.
  • Three Phase Inverter DC utilizes three-phase balanced input. Current wave is fully rectified to DC and switch to 1000Hz to produce AC supply to primary transformer. The current is rectified into DC for welding afterwards.
    Three Phase Inverter DC solution has the following advantages:
    1.It doesn't have blank period in the current wave form. Heat produced is continuous and efficient. The fast feedback control (roughly 0.1 millisecond) ensures stable welding quality and controls welding splash.
    2.It doesn't have blank period in the current wave form. Heat produced is continuous and efficient. The fast feedback control (roughly 0.1 millisecond) ensures stable welding quality and controls welding splash.
    3.High-frequency transformer makes wide-range welding possible. Traditional AC transformer may induce insufficient current disperse with poor welding quality
  • The forging machine applies the independent feed-supplement system, which allows it to associate with robots of brands in a wide variety to take materials instead of manual operation. After system is integrated, the fully automatic production can be achieved by the combination many forging machines to one robot and one screw-type press. The benefit is to elevate the production efficiency and reduce the labor and management requirement.
  • The operating interface is simple and brief, allow for customer design. The user-required production data/info in the interface is rich, which could display the fault point locations and is simple for maintenance. The interface could monitor the production process and record the related production data.
Specification of DJ-VHAC
Specification Rated Capacity Heating Ability Round Steel Dia Cooling Water Usage Rating Supply Voltage Rated Frequency
Model KVA m/m Ø ℓ/min % V Hz
DJ-VHAC160 16 6~12 60 90 200 440
220 480
380 530
400 600
415
50 /60
DJ-VHAC260 26 8~19 80 90 50 /60
DJ-VHAC510 51 12~24 100 90 50 /60
  • Suitable for worldwide voltage, design & making according to requirement of customers.
  • We can change the specification according to the demand of customers.
