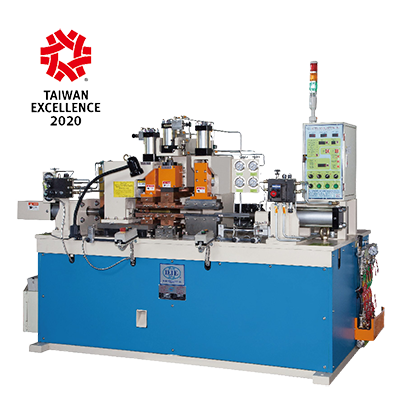

Horizontal Type Electrical Heating Upsetter (For Flat Plate)
This machine has won many patents from government.
Used for Flattening-type and round bar material stainless high-class dinner set shank heating and projecting and projecting to save 30% material (It is a fashionable new-type bacteria-free tools)
DIRECTION :
Stainless steel,alloy steel material thickness 2.5-3.5mm,width:15~35mm,length within 300mm,suitably used for
DJ-VHD 100; material thickness 3.0-4.5mm,width 30-55mm,length within 400mm, suitably used for DJ-VHD150,for alloy stainless
steel, special stainless steel high-class shank upsetting forming. In the production process, electric heating is adopted,
and sliding mould is made of alloy material against high-temperature and wear-resistant to make with aqccessories of
the USA and Europe.
| Specification | Rated Capacity | Heating Ability Round Steel Dia | Cooling Water | Usage Rating | Supply Voltage | Rated Frequency |
|---|---|---|---|---|---|---|
| Model | KVA | m/m Ø | ℓ/min | % | V | Hz |
| DJ-VHD1000 | 100 | Thickness 2.3~3.0
Width 15~35 Length 300 |
60 | 80 | 200~ 600
|
50 /60 |
| DJ-VHD1500 | 150 | Thickness 2.6~4.0
Width 30~55 Length 450 |
80 | 80 | 50 /60 |
There is no notice if design of machine is changed due to increase of machine capability.
