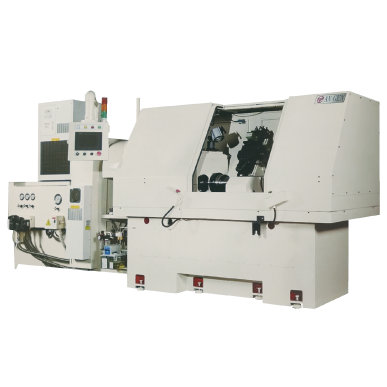

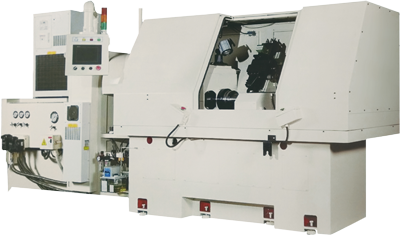

Friction Welding Machine
Specification of DJ-AGF
| Specification | Welding Capacity | Max. Thrust | Motor | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Round bar diameter(Max.) | Pipe fittings(mm/inch) | Rotate length of the side material(Max.) | Length of the regular side material | While friction and generating heat | While forging and pressurizing | Spindle | Hydraulic | Supply Voltage | ||
| Model | mm | mm/inch | mm | mm | TON | TON | kw | kw | V | |
| DJ-AGF15 | Ø15 | 16 | Ø15x230 | 250 | 0.95 | 1.9 | 5.6 | 2.25 | 200 | 440 |
| DJ-AGF35 | Ø35 | 48.3(1-1/2”) | Ø35x260 | restricted | 7 | 14 | 19 | 5.5 | 220 | 480 |
| DJ-AGF70 | Ø70 | 88.9(3”) | Ø75x300 | restricted | 13 | 26 | 30 | 7.5 | 380 | 530 |
| DJ-AGF100 | Ø100 | 140.3(5”) | Ø100x380 | restricted | 25 | 50 | 56 | 11.3 | 400 | 600 |
| 415 | ||||||||||
